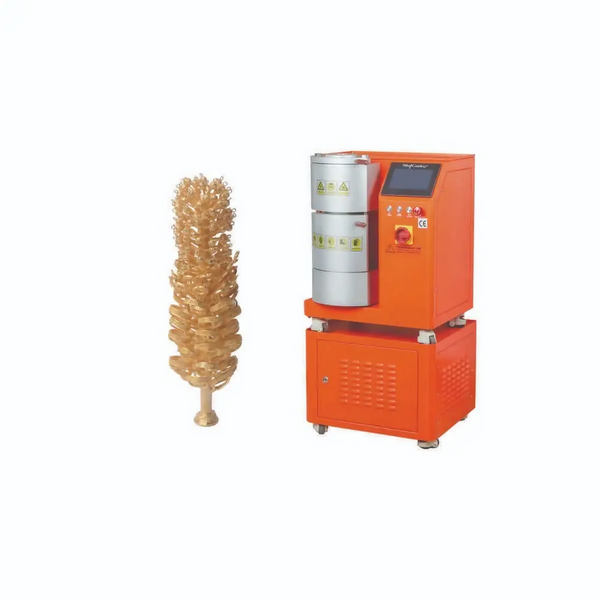

The compact machine features magnetic stirring induction heating, vacuum pressure gravity casting, and independent mixing time control. It offers automatic operation, minimizing metal gasification and oxidation, and is user-friendly for independent operation.

More about this product

Product specifications:

• Model – Z.M.CM.SVC
• Power Supply – 220V /50Hz
• Output Power –  4KWWorking Metal – Gold, Silver & Copper
• Metal Capacity – 1Kg
• Temperature Range – Standard K type 1150 C, R type 1300 C
• Max. Pressure – 0.2Mpa
• Protection Gas – Argon or Nitrogen
• Type of Cooling – Water-Cooling
• Casting Method – Vacuum Pressure Casting
• Abnormal Warning – Self – Diagnostic LED Display
• Environmental Temp. – 5 – 4 C
• Vacuum Device – Match the vacuum pump more than 8 L
• Water Supply – 10 C – 30 C, Water Chiller more than 3P
• Machine Dimensions – 680X 540 X480 MM
• Net Weight – 95 Kg
